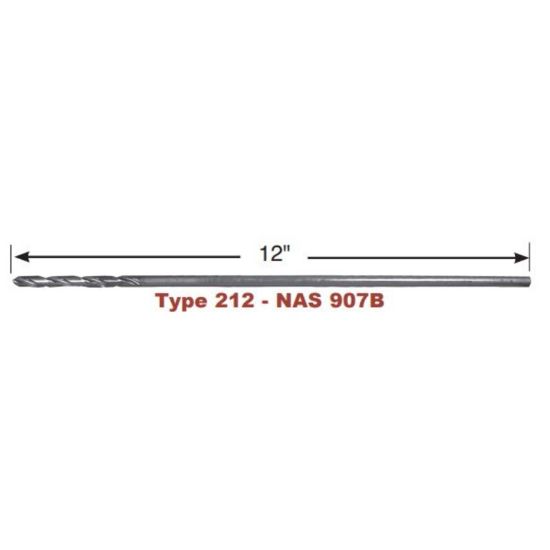

VIKING 68910 19/64 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK68910
Delivery date: 3-5 days
$11.06

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron
Machine Side Connection Size 0.2969 7.54MM
Flute Length 3.0630 77.80MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Overall Len 12.0000 304.80MM
Cutter Dia 0.2969 7.54MM - 19/64
Cut Dia Min 0.2969 7.54MM - 19/64
Tool Material High Speed Steel
Shank/Pilot Dia 0.2969 7.54MM - 19/64
Included Angle 135°
Drill Length Type Aircraft
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
