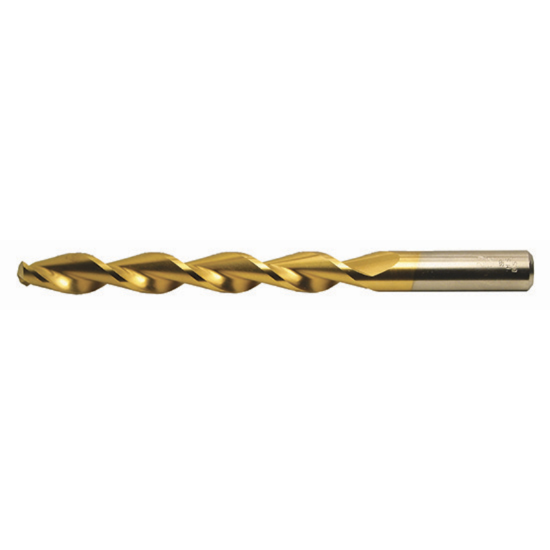

VIKING 68332 #23 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK68332
Delivery date: 3-5 days
$3.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Minnesota
Made In USA Yes
Package Size 6
Application Drilling
Dimensional Specifications
Tool Material High Speed Steel
Flutes/Inserts 2
Drill Length Type Jobber
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Shank/Pilot Dia 0.1540 3.91MM - #23
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Machine Side Connection Size 0.1540 3.91MM
Cutter Dia 0.1540 3.91MM - #23
Machine Side Connection Type Cylindrical
Cut Dia Min 0.1540 3.91MM - #23
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
