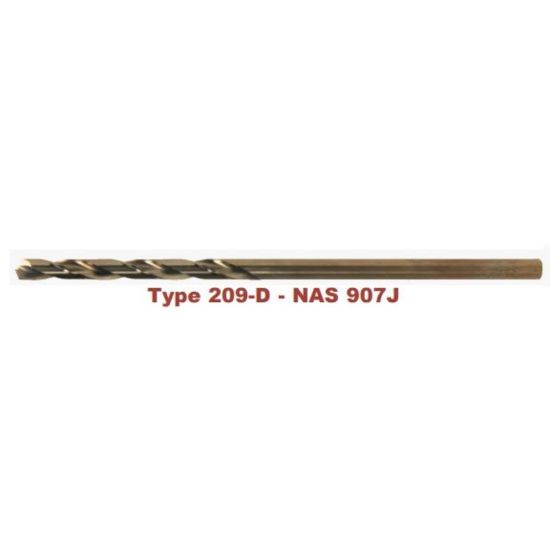

Picture of VIKING 65180 15/64 Cobalt Drill Aircraft Length Gold Coated

VIKING 65180 15/64 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK65180
Delivery date: 3-5 days
$8.64

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Coating TiN
Shipping State Minnesota
Made In USA Yes
Package Size 6
Dimensional Specifications
Cutter Dia 0.2344 5.95MM - 15/64
Cut Rating <25HRC Steel, Grey Iron
Tool Material Cobalt
Cut Dia Min 0.2344 5.95MM - 15/64
Overall Len 6.0000 152.40MM
Drill Length Type Aircraft
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2344 5.95MM
Flute Length 2.6250 66.68MM
Shank/Pilot Dia 0.2344 5.95MM - 15/64
Included Angle 135°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
