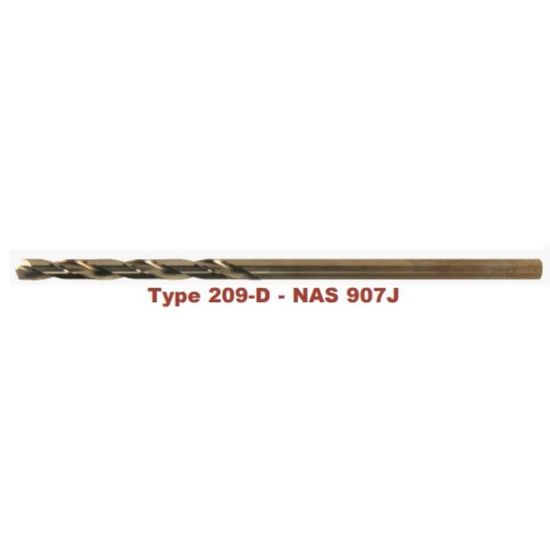

VIKING 65140 11/64 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK65140
Delivery date: 3-5 days
$5.20

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Coating TiN
Application Drilling
Made In USA Yes
Dimensional Specifications
Flute Length 2.1250 53.98MM
Included Angle 135°
Machine Side Connection Size 0.1719 4.37MM
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Grey Iron
Cutter Dia 0.1719 4.36MM - 11/64
Cut Dia Min 0.1719 4.37MM - 11/64
Tool Material Cobalt
Flutes/Inserts 2
Shank/Pilot Dia 0.1719 4.37MM - 11/64
Overall Len 6.0000 152.40MM
Drill Length Type Aircraft
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
