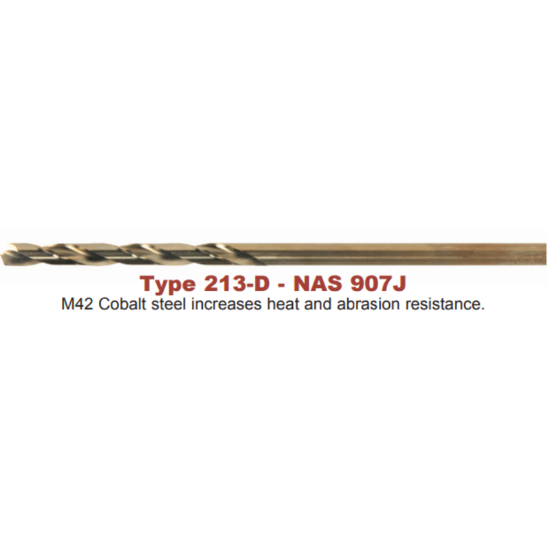

VIKING 61960 #29 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK61960
Delivery date: 3-5 days
$8.03

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Coating TiN
Application Drilling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.1360 3.45MM
Overall Len 12.0000 304.80MM
Cut Dia Min 0.1360 3.45MM - #29
Flute Length 1.7500 44.45MM
Cutter Dia 0.1360 3.45MM - #29
Included Angle 135°
Cut Rating <25HRC Steel, Grey Iron
Drill Length Type Aircraft
Shank/Pilot Dia 0.1360 3.45MM - #29
Flutes/Inserts 2
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
