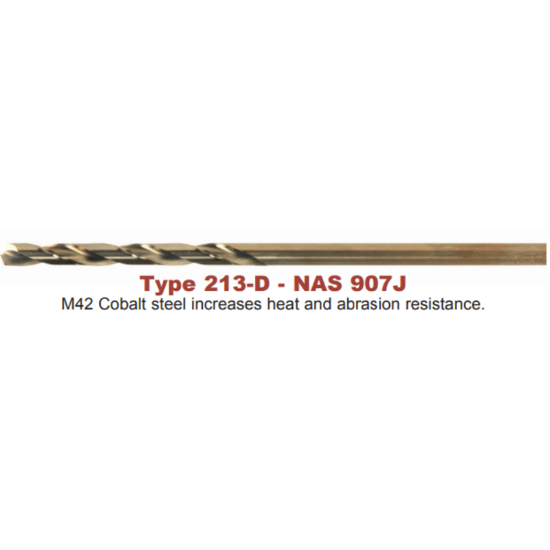

VIKING 61940 #20 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK61940
Delivery date: 3-5 days
$9.44

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Made In USA Yes
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Cut Dia Min 0.1610 4.09MM - #20
Flutes/Inserts 2
Machine Side Connection Size 0.1610 4.09MM
Drill Length Type Aircraft
Cut Rating <25HRC Steel, Grey Iron
Tool Material Cobalt
Cutter Dia 0.1610 4.09MM - #20
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1610 4.09MM - #20
Overall Len 12.0000 304.80MM
Flute Length 2.1250 53.98MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
