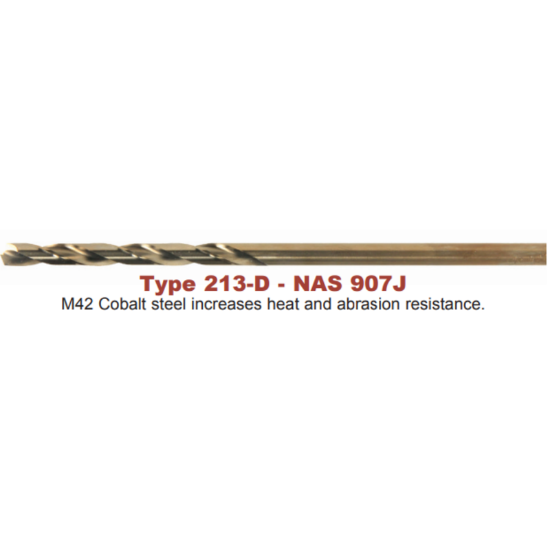

VIKING 61920 #10 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK61920
Delivery date: 3-5 days
$9.74

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Shipping State Minnesota
Application Drilling
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1935 4.91MM
Cut Rating <25HRC Steel, Grey Iron
Drill Length Type Aircraft
Cut Dia Min 0.1935 4.91MM - #10
Tool Material Cobalt
Shank/Pilot Dia 0.1935 4.91MM - #10
Included Angle 135°
Cutter Dia 0.1935 4.91MM - #10
Overall Len 12.0000 304.80MM
Flutes/Inserts 2
Flute Length 2.4380 61.93MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
