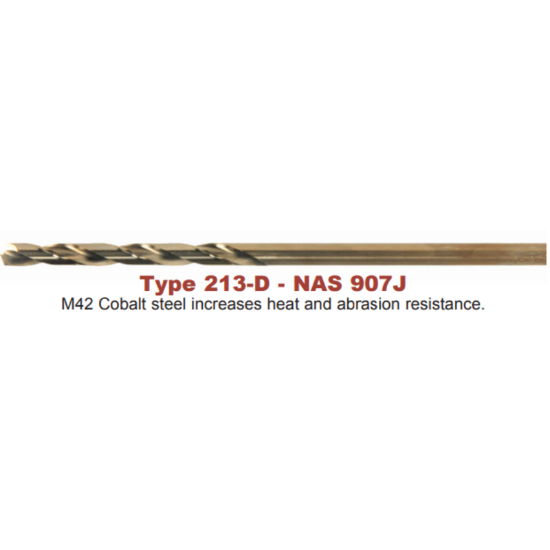

VIKING 61910 #2 Cobalt Drill Aircraft Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK61910
Delivery date: 3-5 days
$14.67

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA Yes
Application Drilling
Shipping State Minnesota
Package Size 1
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron
Tool Material Cobalt
Cut Dia Min 0.2211 5.62MM - #2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2210 5.61MM - #2
Flute Length 2.6250 66.68MM
Cutter Dia 0.2211 5.62MM - #2
Machine Side Connection Size 0.2210 5.61MM
Overall Len 12.0000 304.80MM
Included Angle 135°
Flutes/Inserts 2
Drill Length Type Aircraft
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
