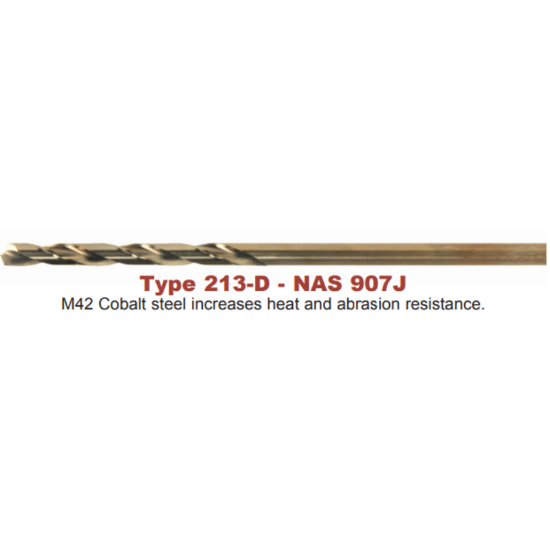

VIKING 61870 7/32 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK61870
Delivery date: 3-5 days
$13.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Cutter Dia 0.2188 5.56MM - 7/32
Machine Side Connection Size 0.2188 5.56MM
Shank/Pilot Dia 0.2187 5.55MM - 7/32
Flutes/Inserts 2
Drill Length Type Aircraft
Cut Dia Min 0.2188 5.56MM - 7/32
Included Angle 135°
Machine Side Connection Type Cylindrical
Flute Length 2.5000 63.50MM
Tool Material High Speed Steel
Overall Len 12.0000 304.80MM
Cut Rating <25HRC Steel, Grey Iron
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
