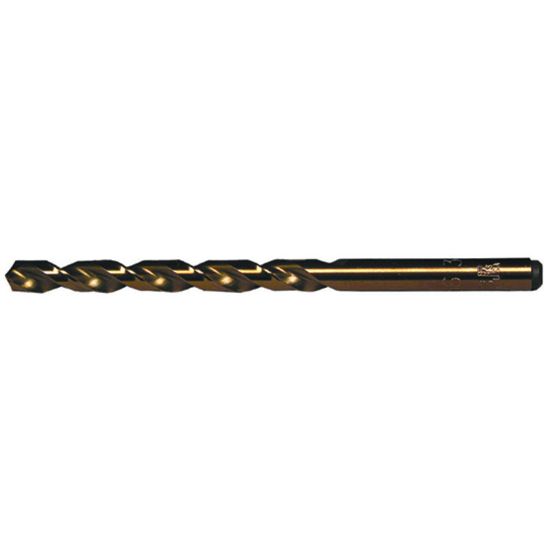

VIKING 614 10.08MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00614
Delivery date: 3-5 days
$16.20

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Package Size 5
Shipping State Minnesota
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.3970 10.08MM - X
Drill Length Type Din
Included Angle 135°
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Flute Length 3.4250 87.00MM
Shank/Pilot Dia 0.3970 10.08MM - X
Overall Len 5.2362 133.00MM
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.3970 10.08MM - X
Machine Side Connection Size 0.3970 10.08MM
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
