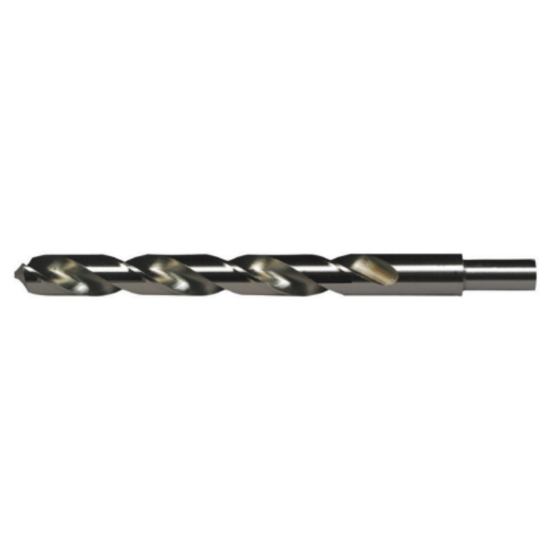

VIKING 59600 29/64 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK59600
Delivery date: 3-5 days
$10.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Application Drilling
Made In USA Yes
Dimensional Specifications
Flute Length 4.1880 106.38MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutter Dia 0.4531 11.51MM - 29/64
Overall Len 5.6250 142.88MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Cut Dia Min 0.4531 11.51MM - 29/64
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
Job Shop Yes
