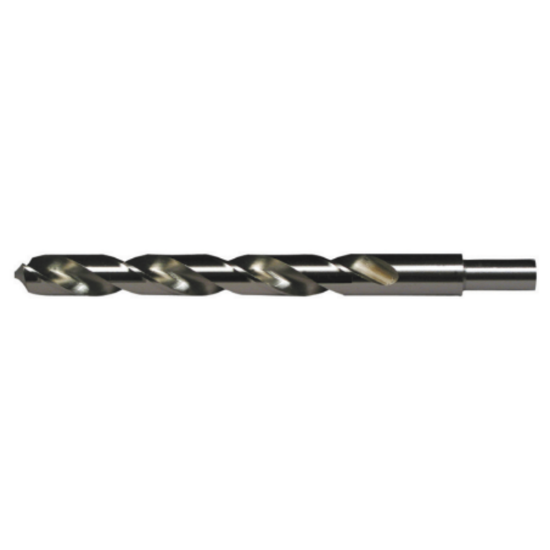

VIKING 59570 25/64 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK59570
Delivery date: 3-5 days
$8.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Package Size 6
Application Drilling
Dimensional Specifications
Cutter Dia 0.3906 9.92MM - 25/64
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Included Angle 118°
Cut Dia Min 0.3906 9.92MM - 25/64
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Overall Len 5.1250 130.18MM
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
