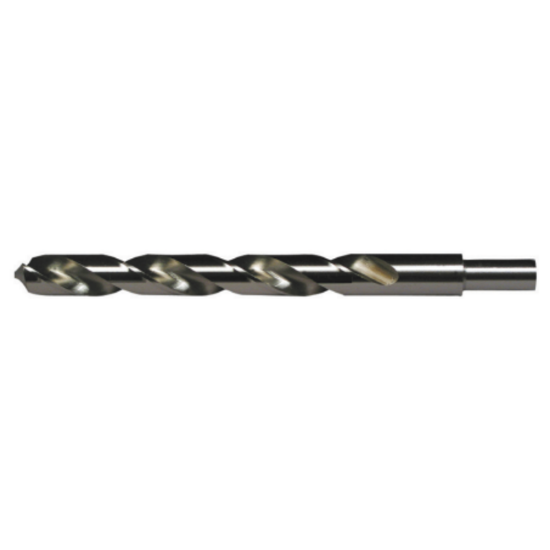

VIKING 59550 19/32 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK59550
Delivery date: 3-5 days
$22.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Machine Side Connection Type Cylindrical
Included Angle 118°
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.5938 15.08MM - 19/32
Overall Len 6.0000 152.40MM
Cut Dia Min 0.5938 15.08MM - 19/32
Flute Length 4.2500 107.95MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
Job Shop Yes
