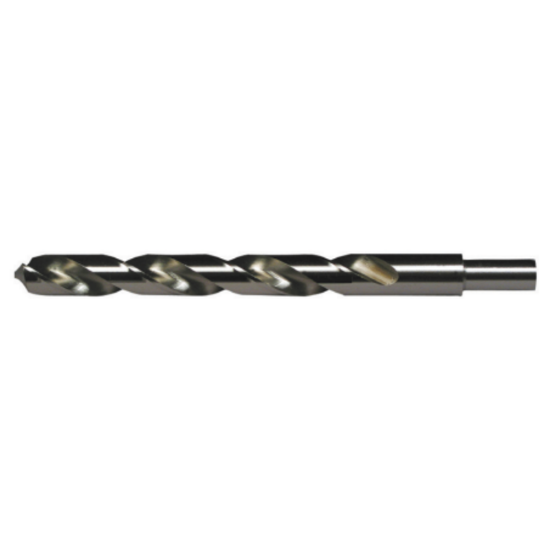

VIKING 59540 9/16 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK59540
Delivery date: 3-5 days
$21.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Application Drilling
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Included Angle 118°
Flute Length 4.2500 107.95MM
Cut Dia Min 0.5625 14.29MM - 9/16
Overall Len 6.0000 152.40MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Drill Length Type Jobber
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Cutter Dia 0.5625 14.29MM - 9/16
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
