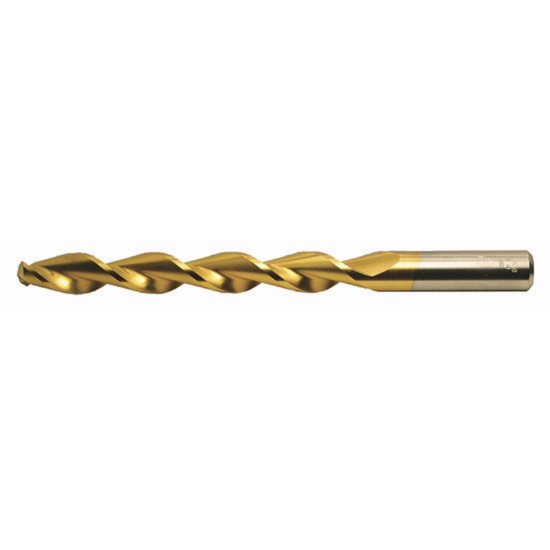

VIKING 58612 O HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK58612
Delivery date: 3-5 days
$8.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Package Size 3
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Overall Len 4.5000 114.30MM
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.3160 8.03MM - O
Tool Material High Speed Steel
Machine Side Connection Size 0.3160 8.03MM
Flutes/Inserts 2
Drill Length Type Jobber
Machine Side Connection Type Cylindrical
Flute Length 3.1880 80.98MM
Cutter Dia 0.3160 8.03MM - O
Shank/Pilot Dia 0.3160 8.03MM - O
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
