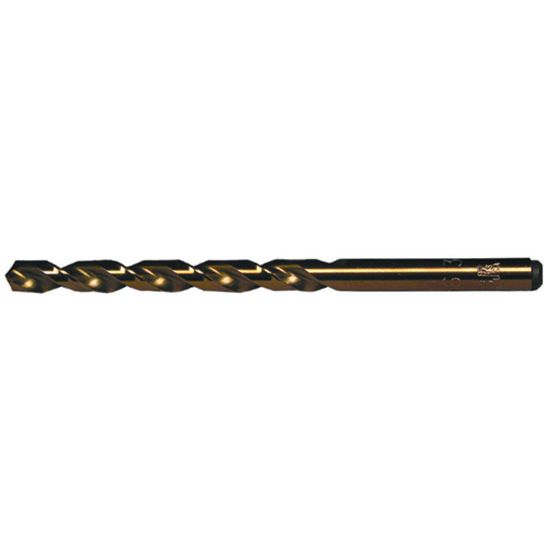

VIKING 561 8.20MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00561
Delivery date: 3-5 days
$12.00

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Application Drilling
Package Size 5
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Flute Length 2.9530 75.01MM
Machine Side Connection Size 0.3228 8.20MM
Flutes/Inserts 2
Tool Material Cobalt
Shank/Pilot Dia 0.3228 8.20MM
Cut Dia Min 0.3228 8.20MM
Overall Len 4.6063 117.00MM
Drill Length Type Din
Cutter Dia 0.3228 8.20MM
Machine Side Connection Type Cylindrical
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
