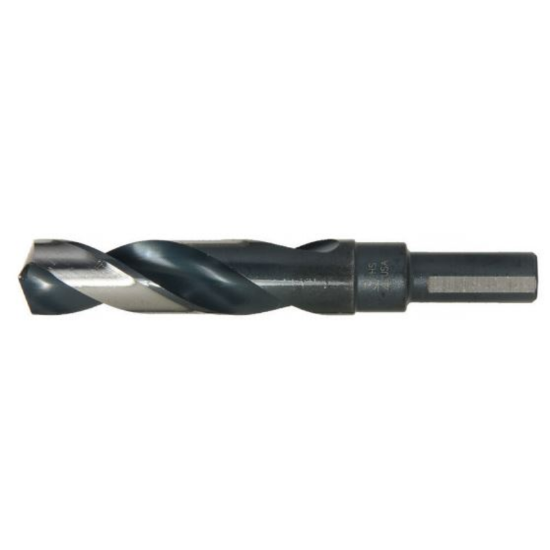

VIKING 54450 1" HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK54450
Delivery date: 3-5 days
$39.69

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Package Size 1
Application Drilling
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Tool Material High Speed Steel
Flutes/Inserts 2
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 1.0000 25.40MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
