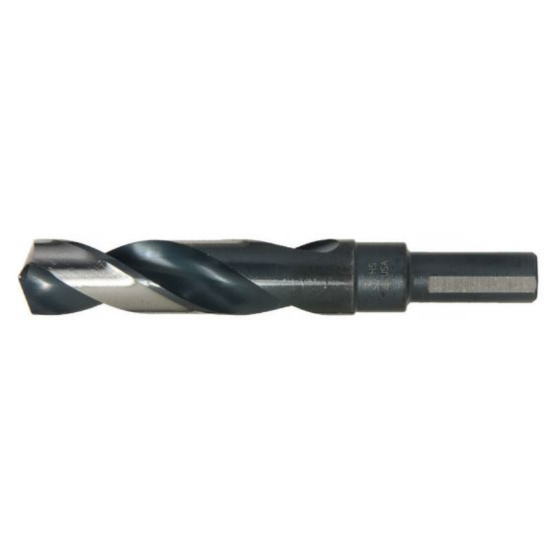

VIKING 54380 25/32 HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK54380
Delivery date: 3-5 days
$29.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Minnesota
Made In USA Yes
Application Drilling
Dimensional Specifications
Included Angle 135°
Cut Dia Min 0.7810 19.84MM - 25/32
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel
Overall Len 5.0000 127.00MM
Cutter Dia 0.7813 19.85MM - 25/32
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
