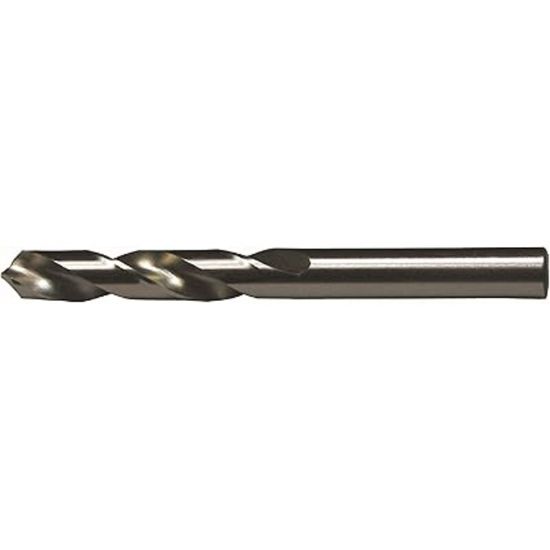

VIKING 53030 #51 HSS Drill Screw Machine Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK53030
Delivery date: 3-5 days
$0.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Application Drilling
Package Size 12
Dimensional Specifications
Machine Side Connection Size 0.0670 1.70MM
Shank/Pilot Dia 0.0670 1.70MM - #51
Cut Rating <25HRC Steel
Flutes/Inserts 2
Flute Length 0.6880 17.48MM
Cut Dia Min 0.0670 1.71MM - #51
Tool Material High Speed Steel
Drill Length Type Screw
Cutter Dia 0.0670 1.70MM - #51
Included Angle 135°
Machine Side Connection Type Cylindrical
Overall Len 1.6875 42.86MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
