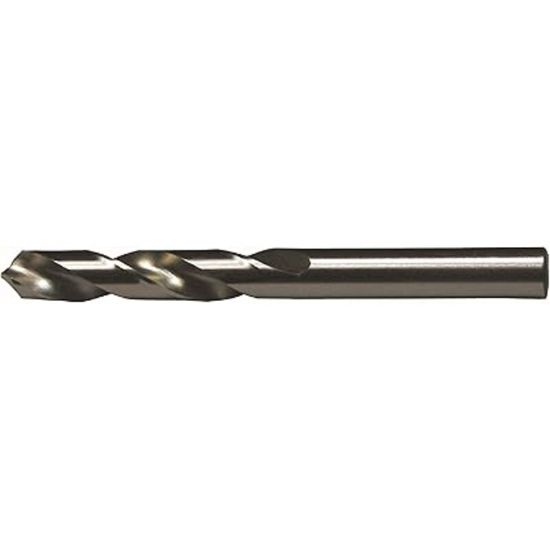

VIKING 52930 #41 HSS Drill Screw Machine Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK52930
Delivery date: 3-5 days
$0.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Application Drilling
Made In USA Yes
Package Size 12
Dimensional Specifications
Cutter Dia 0.0960 2.44MM - #41
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0960 2.44MM
Flute Length 0.8130 20.65MM
Tool Material High Speed Steel
Shank/Pilot Dia 0.0960 2.44MM - #41
Drill Length Type Screw
Included Angle 135°
Overall Len 1.8125 46.04MM
Cut Rating <25HRC Steel
Flutes/Inserts 2
Cut Dia Min 0.0960 2.44MM - #41
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
