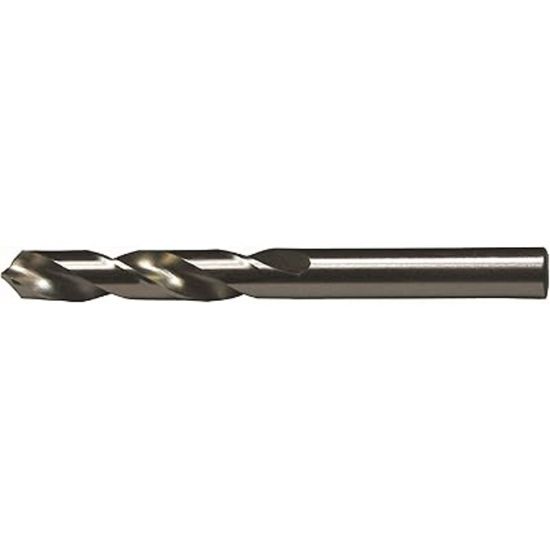

VIKING 52760 #24 HSS Drill Screw Machine Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK52760
Delivery date: 3-5 days
$1.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Application Drilling
Made In USA Yes
Package Size 12
Dimensional Specifications
Machine Side Connection Size 0.1520 3.86MM
Cut Rating <25HRC Steel
Tool Material High Speed Steel
Shank/Pilot Dia 0.1520 3.86MM - #24
Flutes/Inserts 2
Cut Dia Min 0.1520 3.86MM - #24
Machine Side Connection Type Cylindrical
Drill Length Type Screw
Included Angle 135°
Cutter Dia 0.1520 3.86MM - #24
Overall Len 2.0625 52.39MM
Flute Length 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
