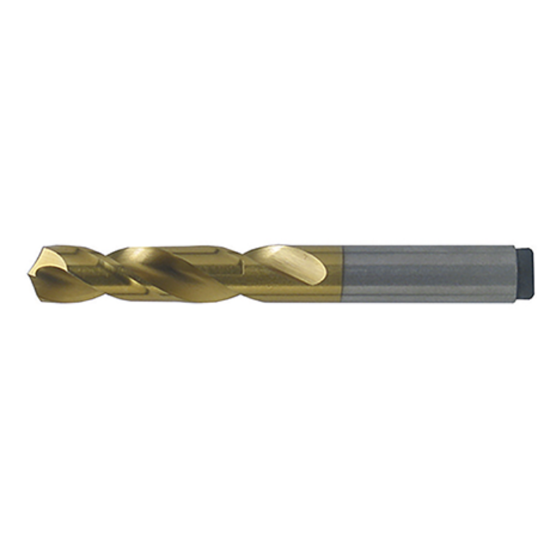

VIKING 51780 3/4" Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK51780
Delivery date: 3-5 days
$33.44

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Coating TiN
Shipping State Minnesota
Made In USA Yes
Package Size 1
Dimensional Specifications
Drill Length Type Screw
Cut Dia Min 0.7500 19.05MM - 3/4
Tool Material Cobalt
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Included Angle 135°
Machine Side Connection Type Cylindrical
Flute Length 3.1250 79.38MM
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
