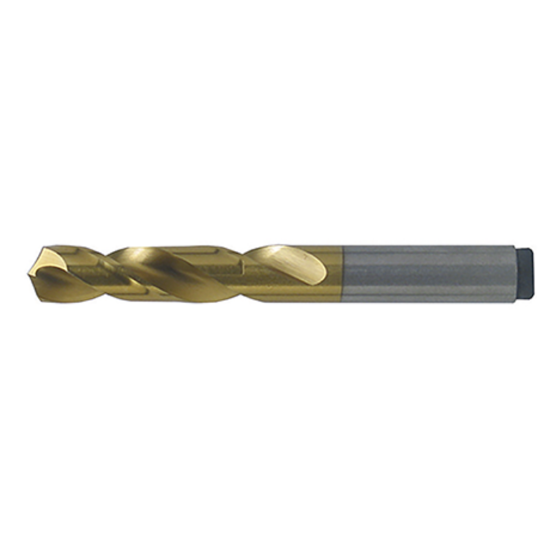

VIKING 51750 45/64 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK51750
Delivery date: 3-5 days
$29.57

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Coating TiN
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Cutter Dia 0.7031 17.86MM - 45/64
Tool Material Cobalt
Flute Length 3.0000 76.20MM
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Included Angle 135°
Shank/Pilot Dia 0.7031 17.86MM - 45/64
Overall Len 4.7500 120.65MM
Cut Dia Min 0.7031 17.86MM - 45/64
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7031 17.86MM
Flutes/Inserts 2
Drill Length Type Screw
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
