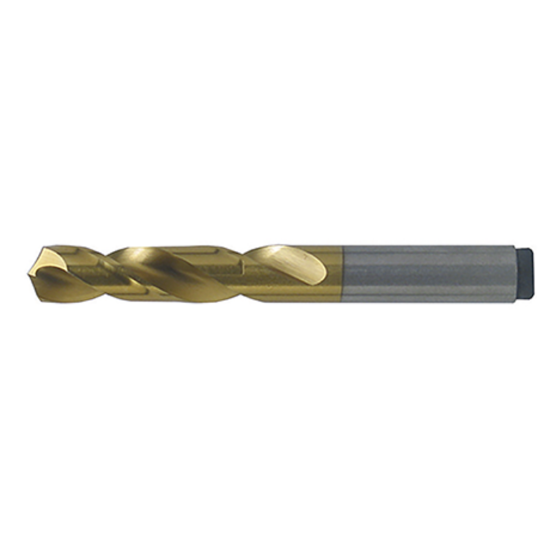

VIKING 51720 21/32 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK51720
Delivery date: 3-5 days
$25.46

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Minnesota
Application Drilling
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.6563 16.67MM - 21/32
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6563 16.67MM
Flutes/Inserts 2
Drill Length Type Screw
Overall Len 4.5000 114.30MM
Flute Length 2.8750 73.03MM
Included Angle 135°
Tool Material Cobalt
Shank/Pilot Dia 0.6562 16.67MM - 21/32
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.6562 16.67MM - 21/32
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
