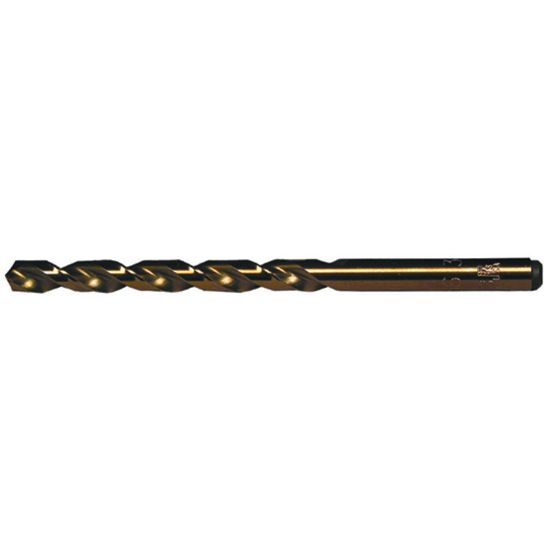

VIKING 514 6.90MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00514
Delivery date: 3-5 days
$8.77

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Package Size 10
Coating TiN
Application Drilling
Dimensional Specifications
Flute Length 2.7170 69.01MM
Drill Length Type Din
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.2717 6.90MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Tool Material Cobalt
Overall Len 4.2913 109.00MM
Shank/Pilot Dia 0.2717 6.90MM
Machine Side Connection Size 0.2717 6.90MM
Cutter Dia 0.2717 6.90MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
