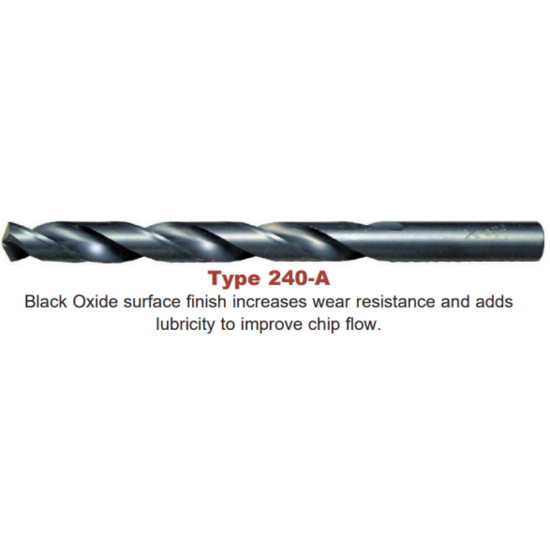

VIKING 5040 #27 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK05040
Delivery date: 3-5 days
$1.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Minnesota
Package Size 12
Application Drilling
Made In USA Yes
Dimensional Specifications
Drill Length Type Jobber
Cut Dia Min 0.1440 3.66MM - #27
Machine Side Connection Type Cylindrical
Tool Material High Speed Steel
Shank/Pilot Dia 0.1440 3.66MM - #27
Included Angle 135°
Machine Side Connection Size 0.1440 3.66MM
Flutes/Inserts 2
Cut Rating <25HRC Steel, Stainless Steel
Cutter Dia 0.1440 3.66MM - #27
Flute Length 1.8750 47.63MM
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
