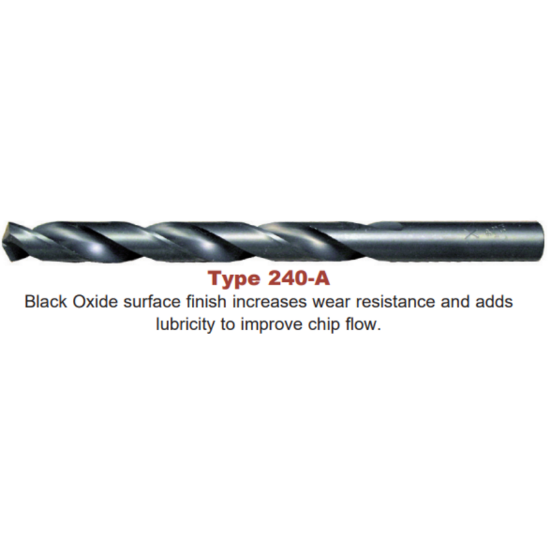

VIKING 5020 #25 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK05020
Delivery date: 3-5 days
$1.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Package Size 12
Application Drilling
Coating TiN
Dimensional Specifications
Flute Length 1.8750 47.63MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1495 3.80MM
Shank/Pilot Dia 0.1495 3.80MM - #25
Overall Len 3.0000 76.20MM
Included Angle 135°
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.1495 3.80MM - #25
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 0.1496 3.80MM - #25
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
