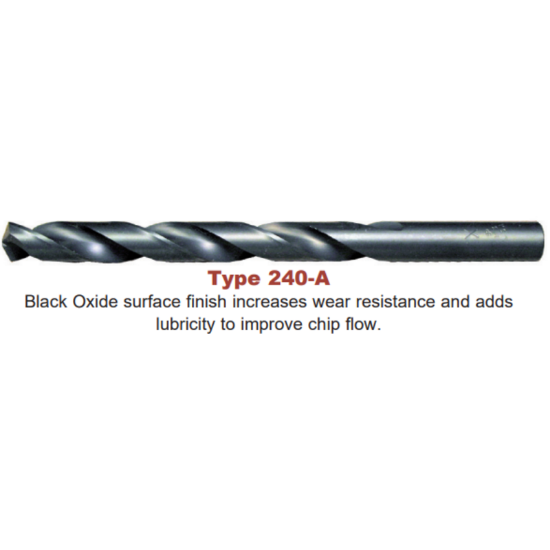

VIKING 5000 #23 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK05000
Delivery date: 3-5 days
$1.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 12
Made In USA Yes
Application Drilling
Shipping State Minnesota
Coating TiN
Dimensional Specifications
Machine Side Connection Size 0.1540 3.91MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1540 3.91MM - #23
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Cut Dia Min 0.1540 3.91MM - #23
Included Angle 135°
Cut Rating <25HRC Steel, Stainless Steel
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.1540 3.91MM - #23
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
