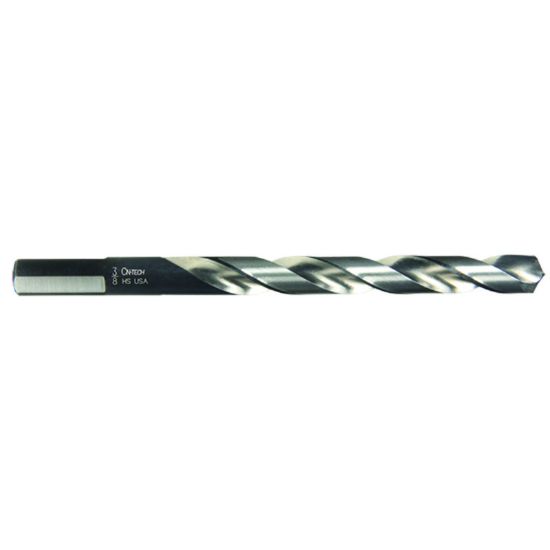

VIKING 47752 X HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK47752
Delivery date: 3-5 days
$10.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Shipping State Minnesota
Package Size 6
Coating Nitride
Dimensional Specifications
Cutter Dia 0.3970 10.08MM - X
Drill Length Type Jobber
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cut Dia Min 0.3970 10.08MM - X
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3970 10.08MM
Tool Material High Speed Steel
Overall Len 5.1250 130.18MM
Included Angle 135°
Shank/Pilot Dia 0.3970 10.08MM - X
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
