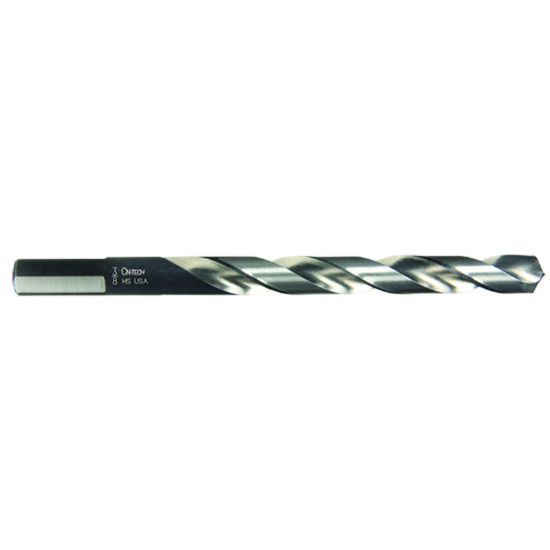

VIKING 47722 U HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK47722
Delivery date: 3-5 days
$8.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Coating Nitride
Application Drilling
Package Size 6
Dimensional Specifications
Overall Len 5.0000 127.00MM
Flute Length 3.6250 92.08MM
Cut Dia Min 0.3680 9.34MM - U
Tool Material High Speed Steel
Machine Side Connection Size 0.3680 9.35MM
Flutes/Inserts 2
Cutter Dia 0.3680 9.35MM - U
Drill Length Type Jobber
Shank/Pilot Dia 0.3680 9.35MM - U
Included Angle 135°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
