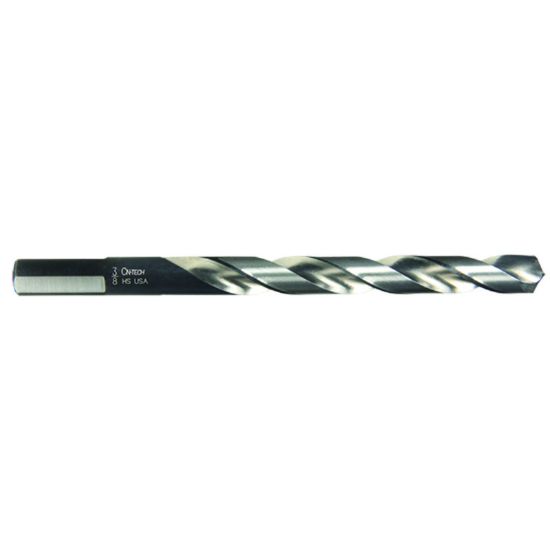

VIKING 47522 A HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK47522
Delivery date: 3-5 days
$3.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride
Shipping State Minnesota
Made In USA Yes
Package Size 12
Application Drilling
Dimensional Specifications
Shank/Pilot Dia 0.2340 5.94MM - A
Cut Dia Min 0.2340 5.94MM - A
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutter Dia 0.2340 5.94MM - A
Machine Side Connection Type Cylindrical
Flute Length 2.6250 66.68MM
Machine Side Connection Size 0.2340 5.94MM
Drill Length Type Jobber
Overall Len 3.8750 98.43MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
