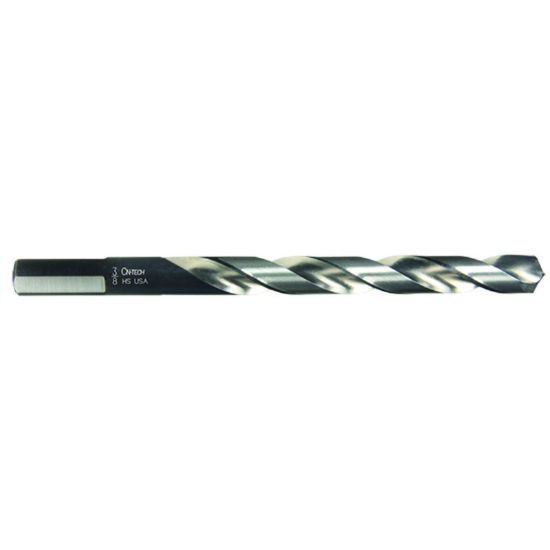

VIKING 47262 27/64 HSS Drill Jobbers Length Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK47262
Delivery date: 3-5 days
$9.30

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride
Made In USA Yes
Application Drilling
Package Size 6
Shipping State Minnesota
Dimensional Specifications
Flutes/Inserts 2
Flute Length 3.9380 100.03MM
Included Angle 135°
Cutter Dia 0.4219 10.72MM - 27/64
Tool Material High Speed Steel
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4219 10.72MM - 27/64
Overall Len 5.3750 136.53MM
Machine Side Connection Size 0.4219 10.72MM
Shank/Pilot Dia 0.4219 10.72MM - 27/64
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
