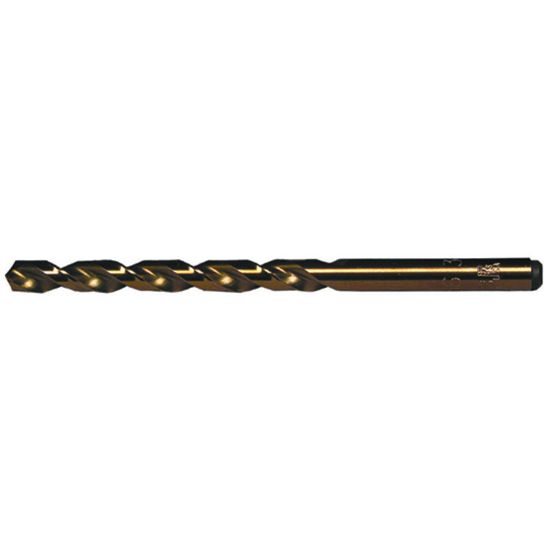

VIKING 471 5.90MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00471
Delivery date: 3-5 days
$7.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Package Size 10
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Drill Length Type Din
Overall Len 3.6614 93.00MM
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.2323 5.90MM
Flutes/Inserts 2
Flute Length 2.2440 57.00MM
Cutter Dia 0.2323 5.90MM
Tool Material Cobalt
Machine Side Connection Size 0.2323 5.90MM
Shank/Pilot Dia 0.2323 5.90MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
