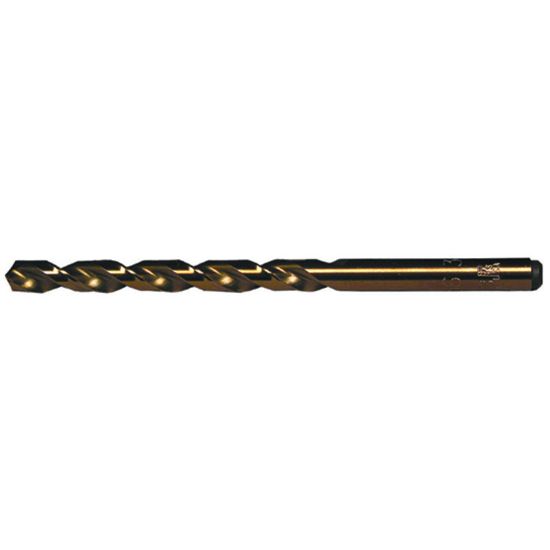

VIKING 470 5.80MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00470
Delivery date: 3-5 days
$6.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Coating TiN
Package Size 10
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cutter Dia 0.2283 5.80MM
Tool Material Cobalt
Flutes/Inserts 2
Flute Length 2.2440 57.00MM
Machine Side Connection Size 0.2283 5.80MM
Shank/Pilot Dia 0.2283 5.80MM
Overall Len 3.6614 93.00MM
Drill Length Type Din
Included Angle 135°
Cut Dia Min 0.2283 5.80MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
