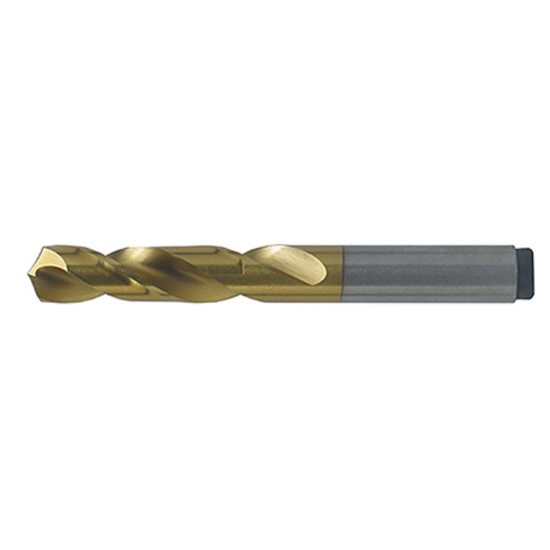

VIKING 42550 #55 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK42550
Delivery date: 3-5 days
$1.66

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Coating TiN
Made In USA Yes
Package Size 12
Dimensional Specifications
Cut Dia Min 0.0520 1.32MM - #55
Included Angle 135°
Overall Len 1.6250 41.28MM
Cutter Dia 0.0520 1.32MM - #55
Tool Material Cobalt
Machine Side Connection Size 0.0520 1.32MM
Machine Side Connection Type Cylindrical
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Flute Length 0.6250 15.88MM
Shank/Pilot Dia 0.0520 1.32MM - #55
Flutes/Inserts 2
Drill Length Type Screw
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
