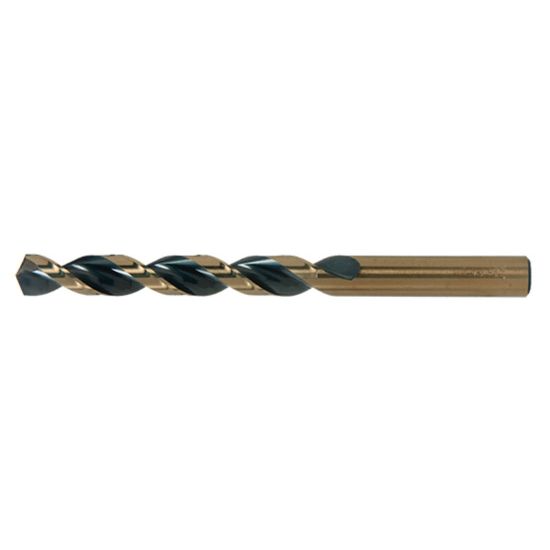

VIKING 40890 9/64 HSS Drill Extra Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK40890
Delivery date: 3-5 days
$14.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Application Drilling
Package Size 1
Dimensional Specifications
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Machine Side Connection Size 0.1406 3.57MM
Flute Length 6.0000 152.40MM
Included Angle 135°
Drill Length Type Extra Length
Machine Side Connection Type Cylindrical
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Tool Material High Speed Steel
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Overall Len 9.0000 228.60MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
