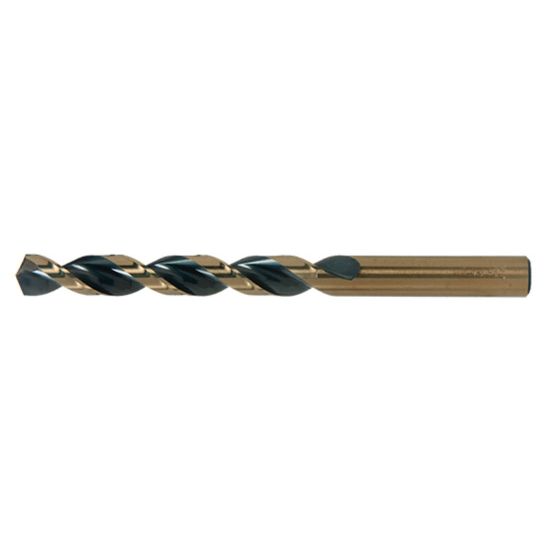

VIKING 39410 3/8x6 HSS Drill Extra Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK39410
Delivery date: 3-5 days
$13.04

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Package Size 1
Application Drilling
Dimensional Specifications
Overall Len 6.0000 152.40MM
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Dia 0.3750 9.53MM - 3/8
Drill Length Type Extra Length
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Flute Length 4.0000 101.60MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
