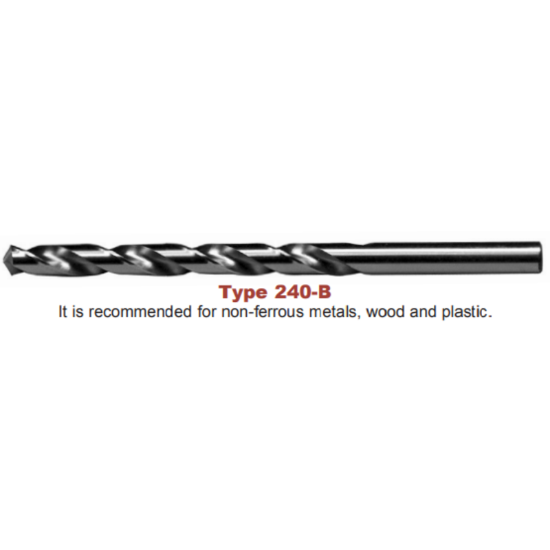

VIKING 3940 #76 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK03940
Delivery date: 3-5 days
$2.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Package Size 12
Shipping State Minnesota
Dimensional Specifications
Flutes/Inserts 2
Flute Length 0.1880 4.78MM
Tool Material High Speed Steel
Cutter Dia 0.0200 0.51MM - #76
Cut Dia Min 0.0200 0.51MM - #76
Machine Side Connection Size 0.0200 0.51MM
Shank/Pilot Dia 0.0200 0.51MM - #76
Overall Len 0.8750 22.23MM
Machine Side Connection Type Cylindrical
Included Angle 118°
Cut Rating Aluminum, Brass, Plastic, Copper
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
