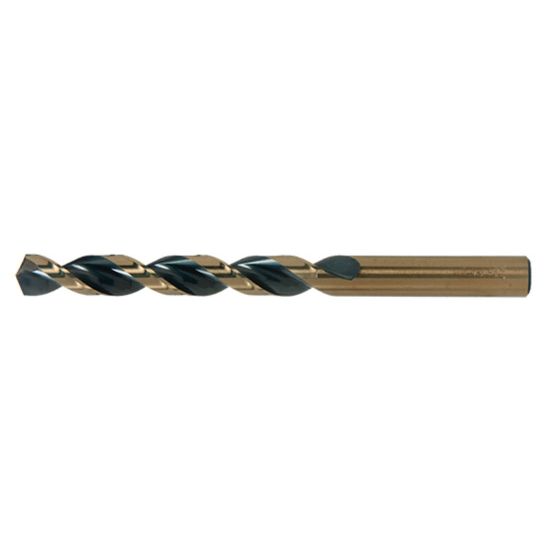

VIKING 39340 #1x6 HSS Drill Extra Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK39340
Delivery date: 3-5 days
$10.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Package Size 3
Shipping State Minnesota
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2280 5.79MM - #1
Cut Dia Min 0.2280 5.79MM - #1
Machine Side Connection Size 0.2280 5.79MM
Included Angle 135°
Drill Length Type Extra Length
Flute Length 4.0000 101.60MM
Cutter Dia 0.2280 5.79MM - #1
Overall Len 6.0000 152.40MM
Cut Rating <40HRC Steel, Stainless Steel
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
