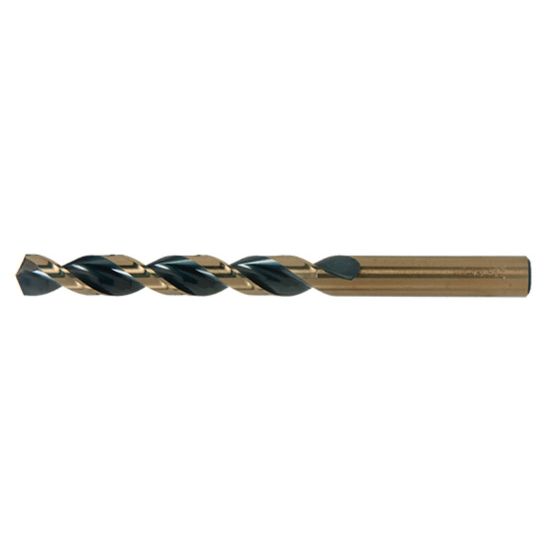

VIKING 39260 9/64x6 HSS Drill Extra Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK39260
Delivery date: 3-5 days
$8.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 3
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Machine Side Connection Size 0.1406 3.57MM
Drill Length Type Extra Length
Flute Length 4.0000 101.60MM
Included Angle 135°
Cut Rating <40HRC Steel, Stainless Steel
Tool Material High Speed Steel
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
