Picture of VIKING 38763 5/16 Cobalt Drill DIN Length TIN

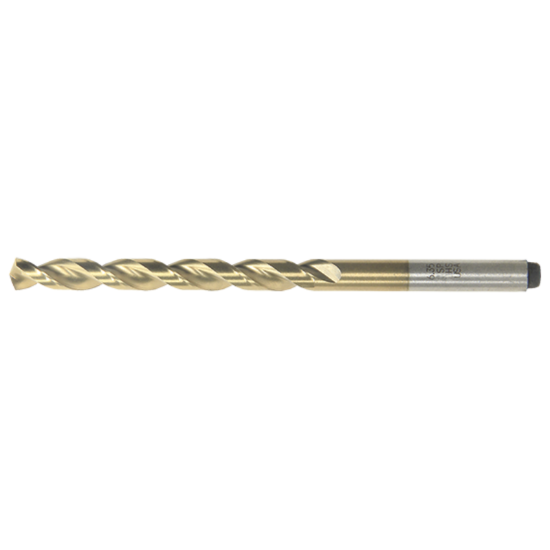

VIKING 38763 5/16 Cobalt Drill DIN Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK38763
Delivery date: 3-5 days
$10.33

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 5
Coating TiN
Shipping State Minnesota
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Included Angle 135°
Tool Material Cobalt
Cutter Dia 0.3125 7.94MM - 5/16
Cut Dia Min 0.3125 7.94MM - 5/16
Overall Len 4.5938 116.68MM
Machine Side Connection Type Cylindrical
Flute Length 2.9380 74.63MM
Drill Length Type Din
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
