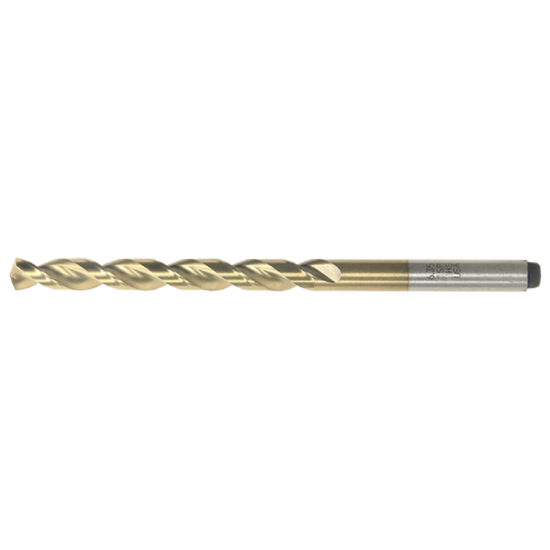

VIKING 38743 9/32 Cobalt Drill DIN Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK38743
Delivery date: 3-5 days
$8.84

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 10
Shipping State Minnesota
Coating TiN
Application Drilling
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cutter Dia 0.2812 7.14MM - 9/32
Tool Material Cobalt
Overall Len 4.2813 108.75MM
Flute Length 2.7190 69.06MM
Shank/Pilot Dia 0.2810 7.14MM - 9/32 - K
Flutes/Inserts 2
Machine Side Connection Size 0.2813 7.15MM
Drill Length Type Din
Included Angle 135°
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
