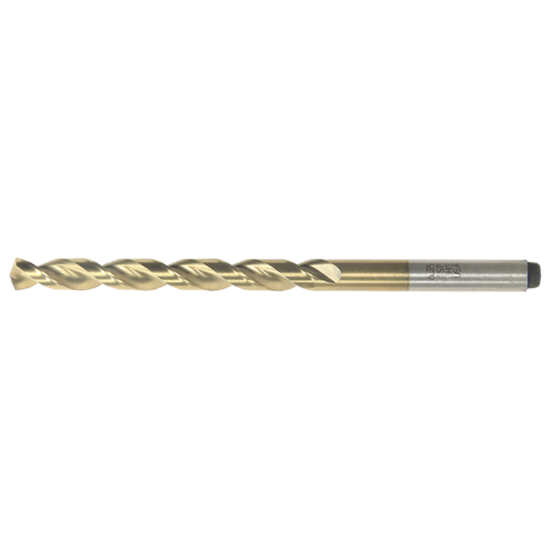

Picture of VIKING 38683 3/16 Cobalt Drill DIN Length TIN

VIKING 38683 3/16 Cobalt Drill DIN Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK38683
Delivery date: 3-5 days
$4.54

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Package Size 10
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.1875 4.76MM - 3/16
Overall Len 3.3750 85.73MM
Flute Length 2.0630 52.40MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Type Cylindrical
Tool Material Cobalt
Machine Side Connection Size 0.1875 4.76MM
Drill Length Type Din
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
