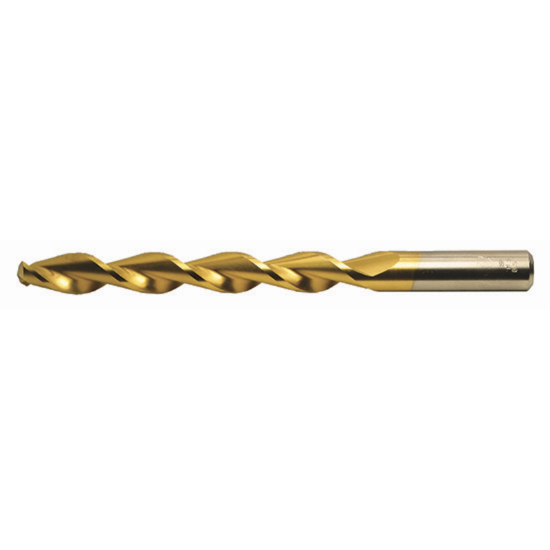

VIKING 38070 3/8 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK38070
Delivery date: 3-5 days
$9.94

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 3
Shipping State Minnesota
Application Drilling
Made In USA Yes
Coating TiN
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Flute Length 3.6250 92.08MM
Flutes/Inserts 2
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Overall Len 5.0000 127.00MM
Drill Length Type Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
