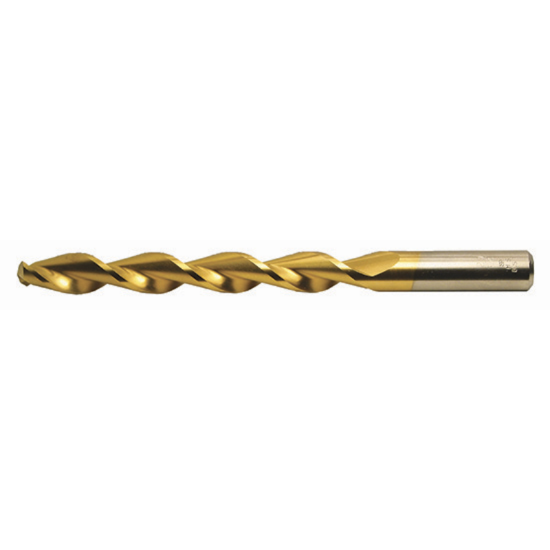

VIKING 37722 #37 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37722
Delivery date: 3-5 days
$2.51

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 6
Coating TiN
Made In USA Yes
Dimensional Specifications
Tool Material High Speed Steel
Included Angle 135°
Cut Dia Min 0.1040 2.64MM - #37
Machine Side Connection Size 0.1040 2.64MM
Overall Len 2.5000 63.50MM
Flute Length 1.4380 36.53MM
Machine Side Connection Type Cylindrical
Drill Length Type Jobber
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cutter Dia 0.1040 2.64MM - #37
Shank/Pilot Dia 0.1040 2.64MM - #37
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
