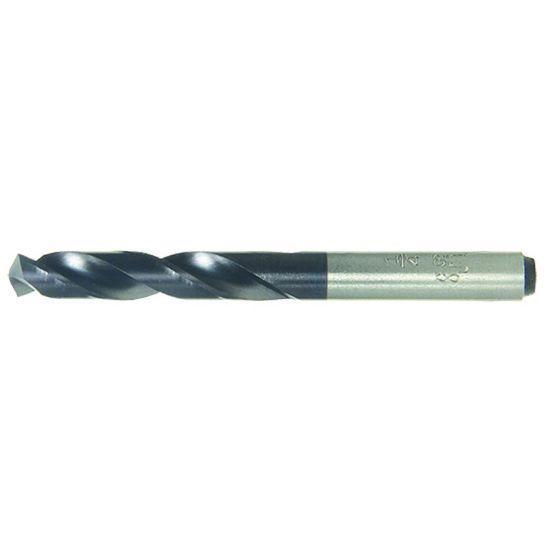

VIKING 37363 15/32 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37363
Delivery date: 3-5 days
$20.37

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 3
Made In USA Yes
Coating TiN
Application Drilling
Dimensional Specifications
Cut Dia Min 0.4688 11.91MM - 15/32
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Overall Len 3.6250 92.08MM
Machine Side Connection Size 0.4688 11.91MM
Tool Material Cobalt
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutter Dia 0.4688 11.91MM - 15/32
Flute Length 2.1250 53.98MM
Drill Length Type Screw
Included Angle 135°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
