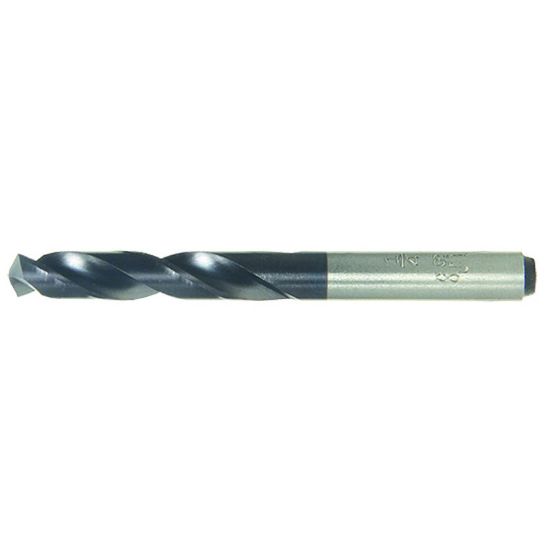

VIKING 37333 27/64 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37333
Delivery date: 3-5 days
$16.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 3
Coating TiN
Shipping State Minnesota
Made In USA Yes
Dimensional Specifications
Drill Length Type Screw
Tool Material Cobalt
Machine Side Connection Size 0.4219 10.72MM
Shank/Pilot Dia 0.4219 10.72MM - 27/64
Flutes/Inserts 2
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutter Dia 0.4219 10.72MM - 27/64
Flute Length 2.0000 50.80MM
Cut Dia Min 0.4219 10.72MM - 27/64
Machine Side Connection Type Cylindrical
Overall Len 3.3750 85.73MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
