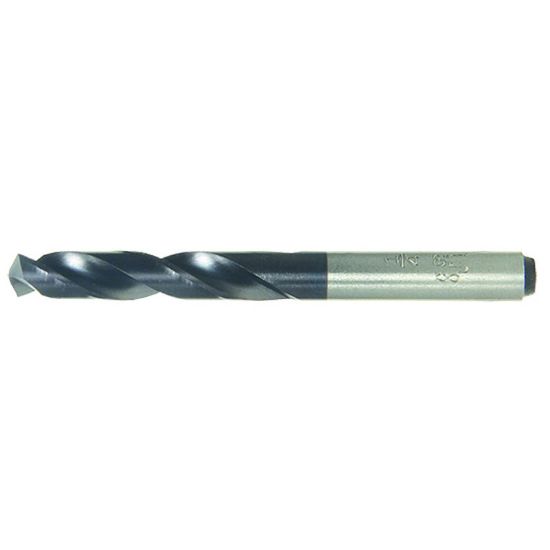

VIKING 37323 13/32 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37323
Delivery date: 3-5 days
$15.30

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Shipping State Minnesota
Coating TiN
Package Size 3
Dimensional Specifications
Flute Length 1.9380 49.23MM
Cutter Dia 0.4062 10.32MM - 13/32
Overall Len 3.3125 84.14MM
Drill Length Type Screw
Included Angle 135°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.0313 26.20MM - 1-1/32
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Flutes/Inserts 2
Cut Dia Min 0.4063 10.32MM - 13/32
Tool Material Cobalt
Machine Side Connection Size 1.0313 26.20MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
