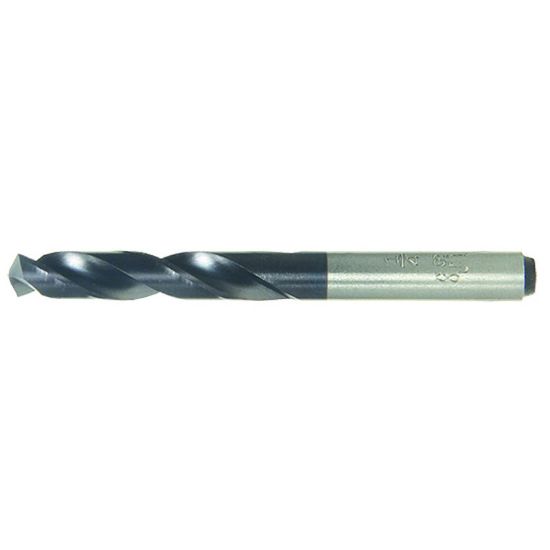

VIKING 37233 17/64 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37233
Delivery date: 3-5 days
$7.81

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Application Drilling
Coating TiN
Package Size 6
Dimensional Specifications
Cut Dia Min 0.2656 6.75MM - 17/64
Shank/Pilot Dia 0.2656 6.75MM - 17/64
Flute Length 1.4380 36.53MM
Included Angle 135°
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Overall Len 2.6250 66.68MM
Machine Side Connection Size 0.2656 6.75MM
Flutes/Inserts 2
Drill Length Type Screw
Tool Material Cobalt
Cutter Dia 0.2656 6.75MM - 17/64
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
