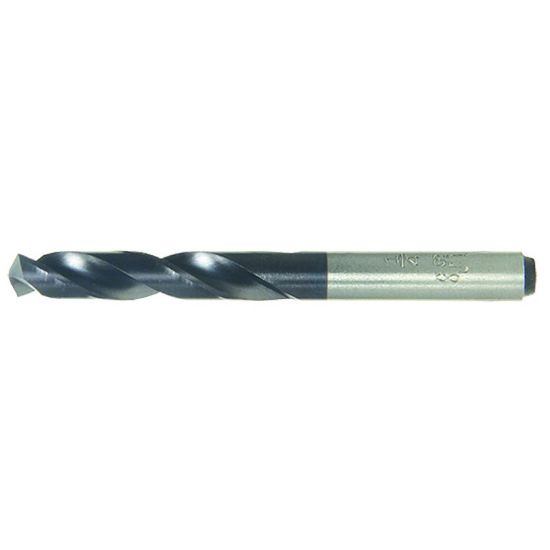

VIKING 37223 1/4" Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37223
Delivery date: 3-5 days
$6.53

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Coating TiN
Application Drilling
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Flute Length 1.3750 34.93MM
Drill Length Type Screw
Cutter Dia 0.2500 6.35MM - 1/4 - E
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
